Aluminium Frame by Trailstar International

Features - Smoothside or traditional Sheet and Post

  • Frame: 16" High Tensile Rolled Steel Chassis, 26# Beam - or 17" H.D. Extruded Alum I Beam
  • Upper Coupler Plate: 5/16" High Tensile w/ 16" Pin Setting

Sheet & Post Features

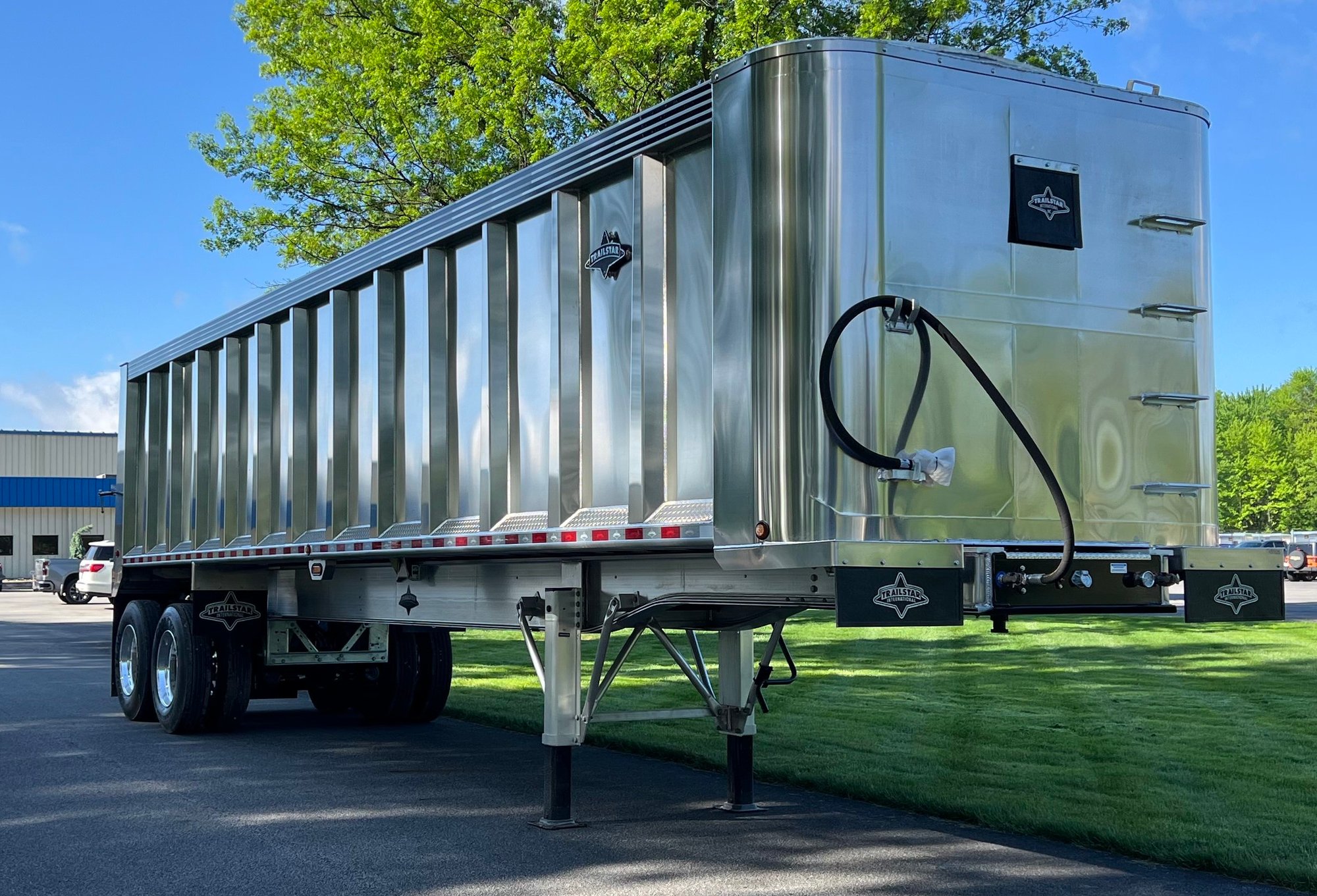

  • Bulkhead: 3/16" #32 Aluminum Full Wrap Around or Slopenose Design
  • Sides: 3/16" 5454 #34 Aluminum

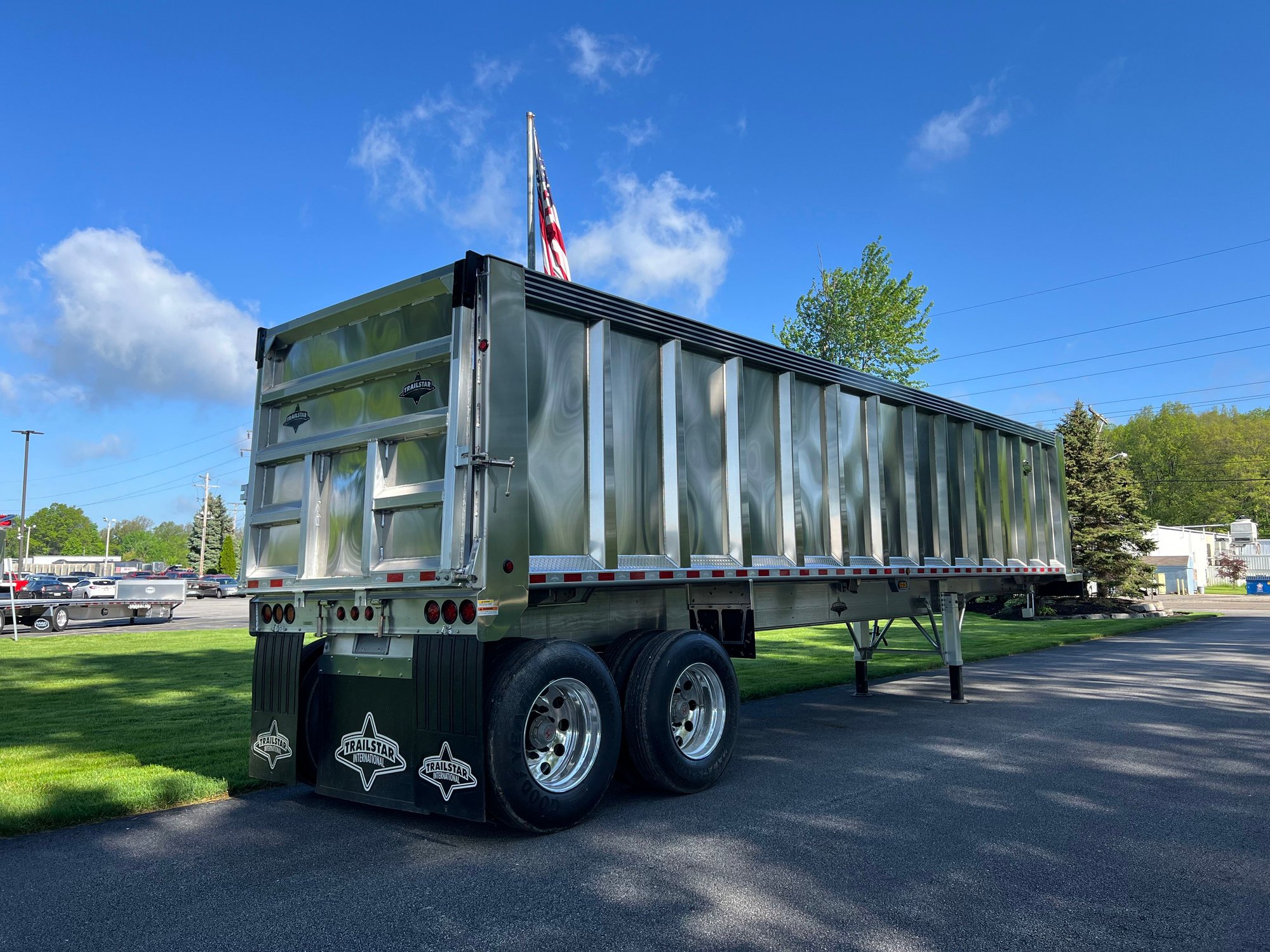

  • Tailgate: 3/16" High Tensile Aluminum with H.D. Cast Flush Hardware; 12" Double Lug Coal Door; Maxi Air Cylinder Operating Latching System
  • Top Rail: 9" H.D. Interlocking
  • Bottom Rail: 8" Wide, One Piece Extrusion w/ 5" Inside Cleanout
  • Crossmembers: U-shaped Extrusion Spaced 12" Apart; Reinforced Doghouse Area and Suspension Area
  • Wiring: Trucklite Weatherproof Harnessing w/ Lifetime warranty on L.E.D. System

Smoothside Features

  • Panels: 12" Extruded Vertical Panels Interlocked Together
  • Sidesheet: Inner Sidesheet in 3/16" or 1/4" Material
  • Tailgate: Smooth Style Gate or Standard Vertical Bracing Available
  • Marker Lights: Trucklite Marker Lights available in Panel or Bottom Rail
  • Finish: Polished or Milled
